Blower Unit
Blower Unit consists of acoustic cabin, blower, chassis, expansion chamber, safety valve, filter, suction and compression manometers, check valve, silencer mechanism, belt and pulleys and electrical motor.
-
Blower Stand
We supply Roots Blowers as Stand Model. Stand model consists of blower, chassis, expansion chamber, safety valve, filter, suction and compression manometers, check valve, silencer mechanism, belt and pulleys and electrical motor.
-
Blower Body
We supply also only Blower Body according to clients' request. Blower body and rotors are made from cast-iron and it is sturdy.

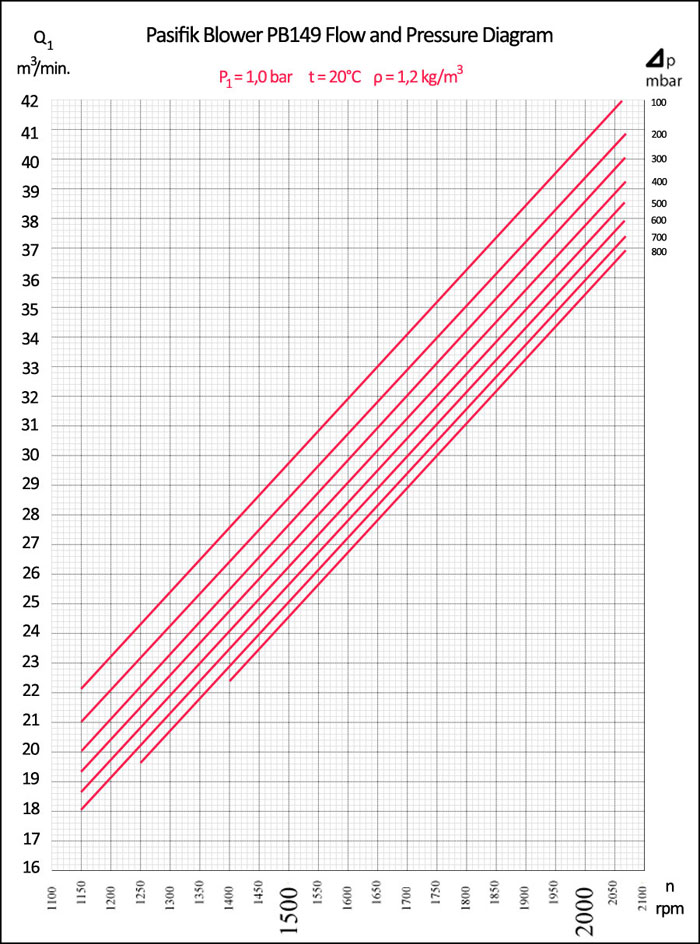

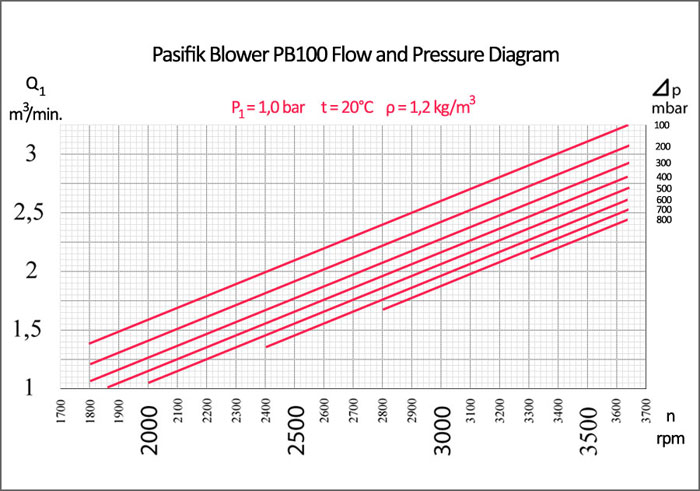

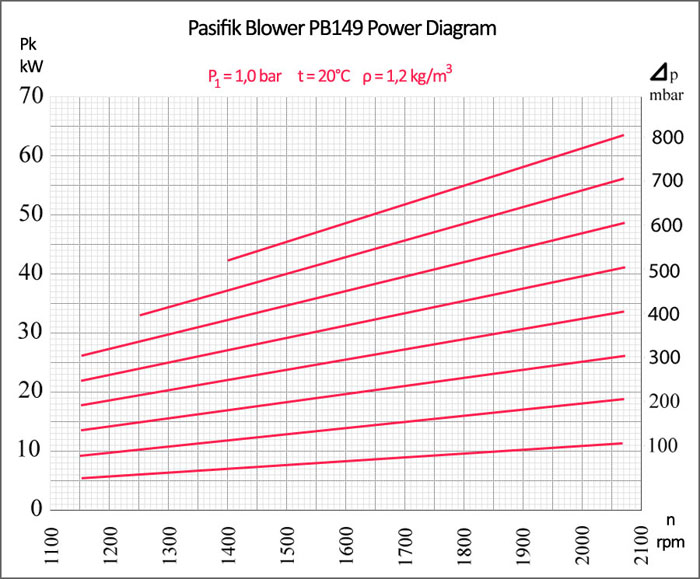

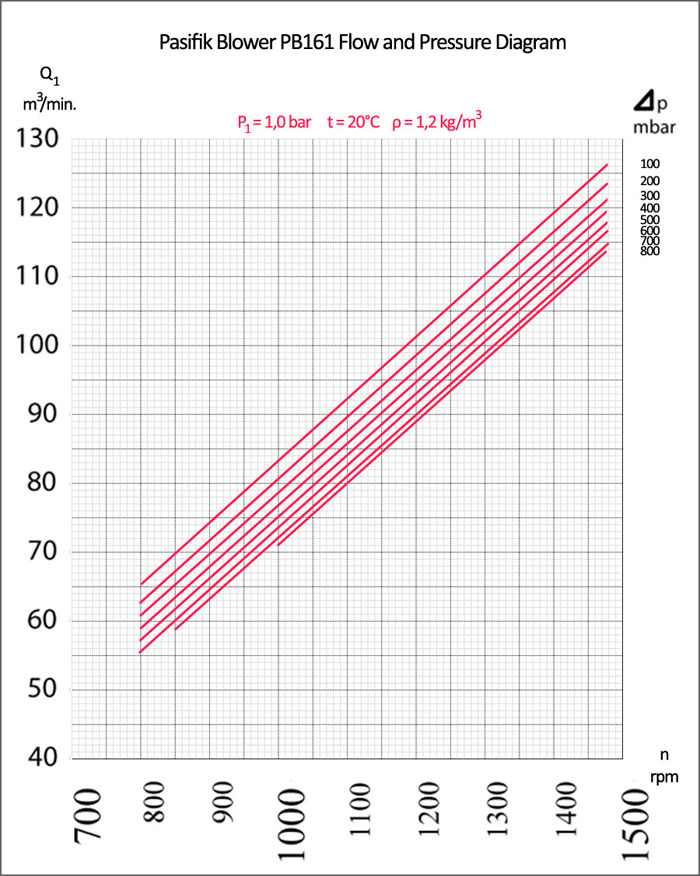

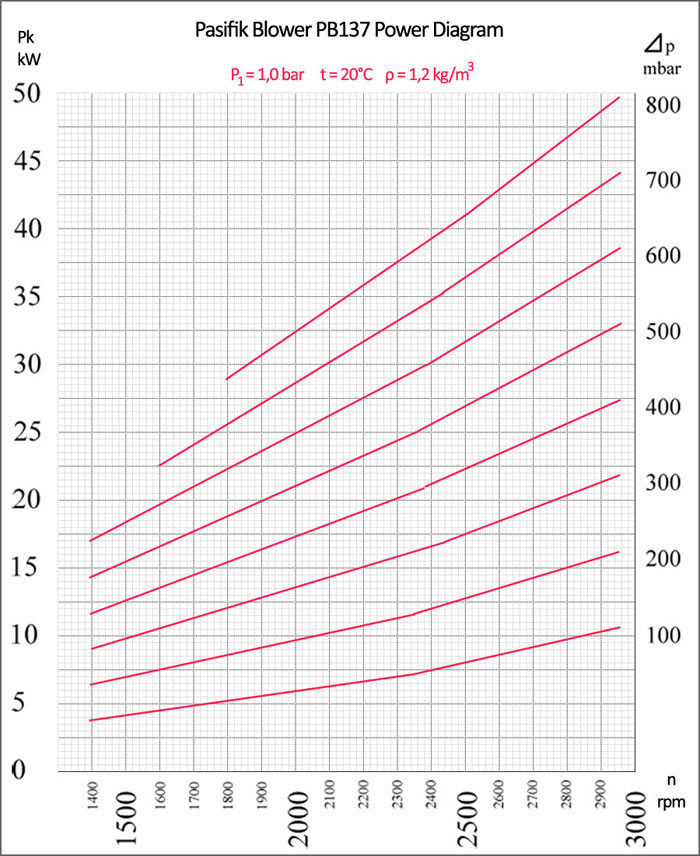

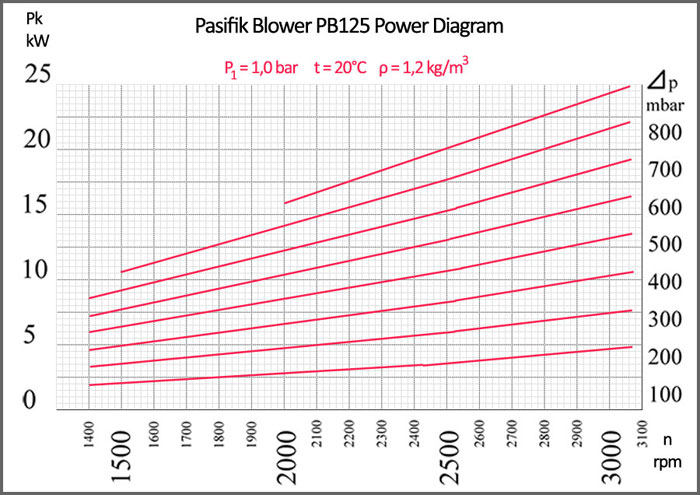

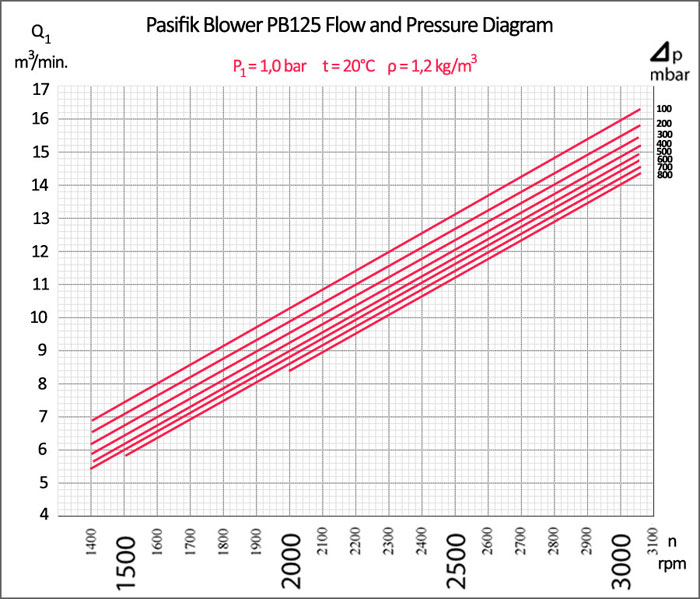

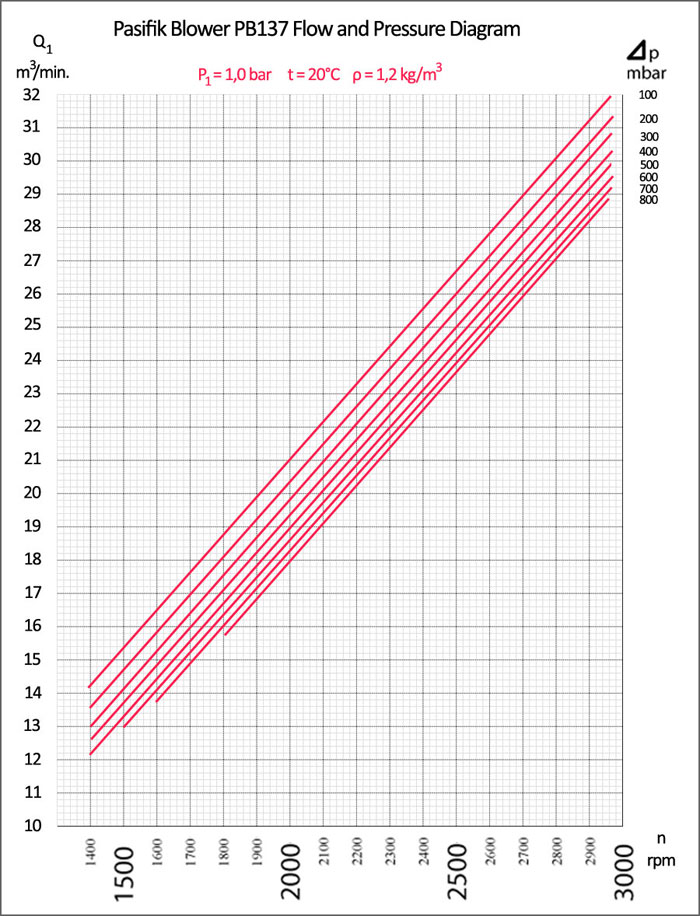

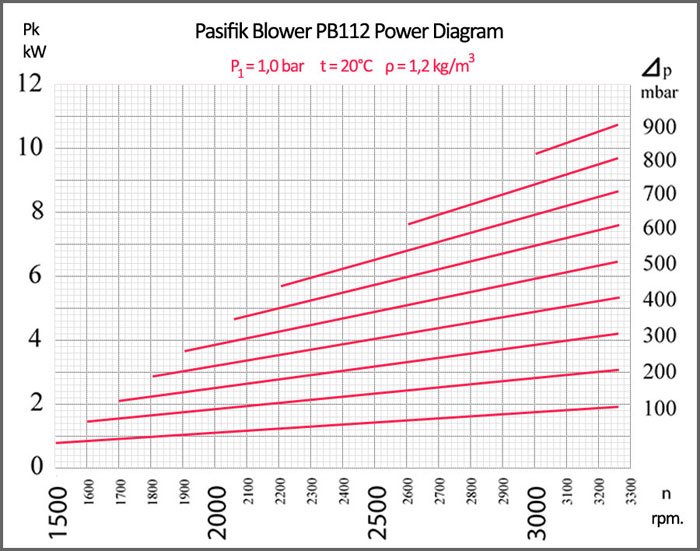

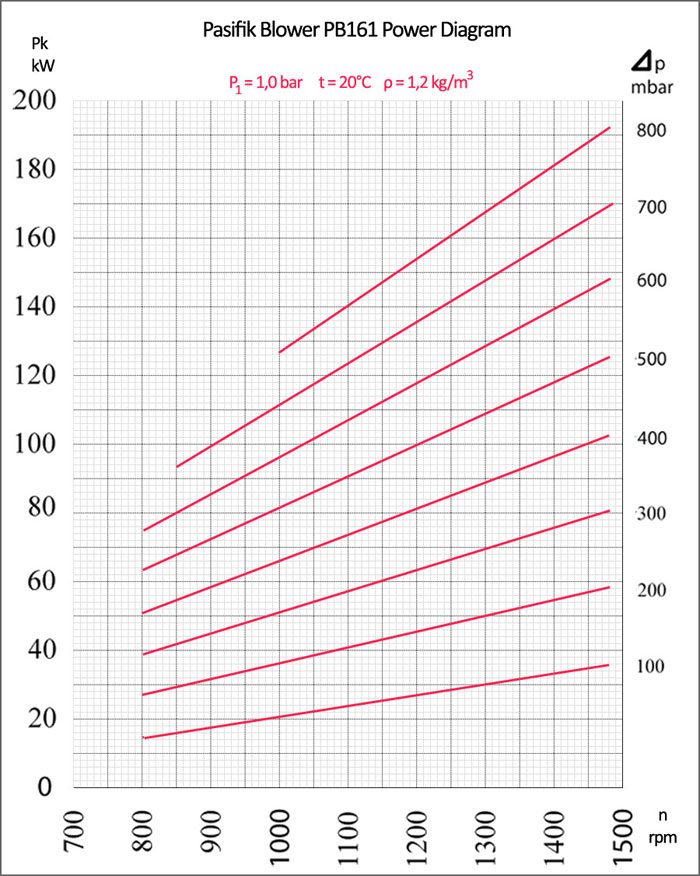

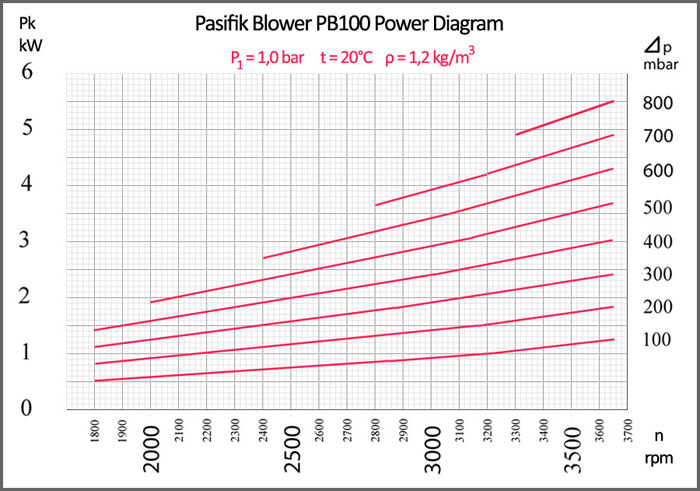

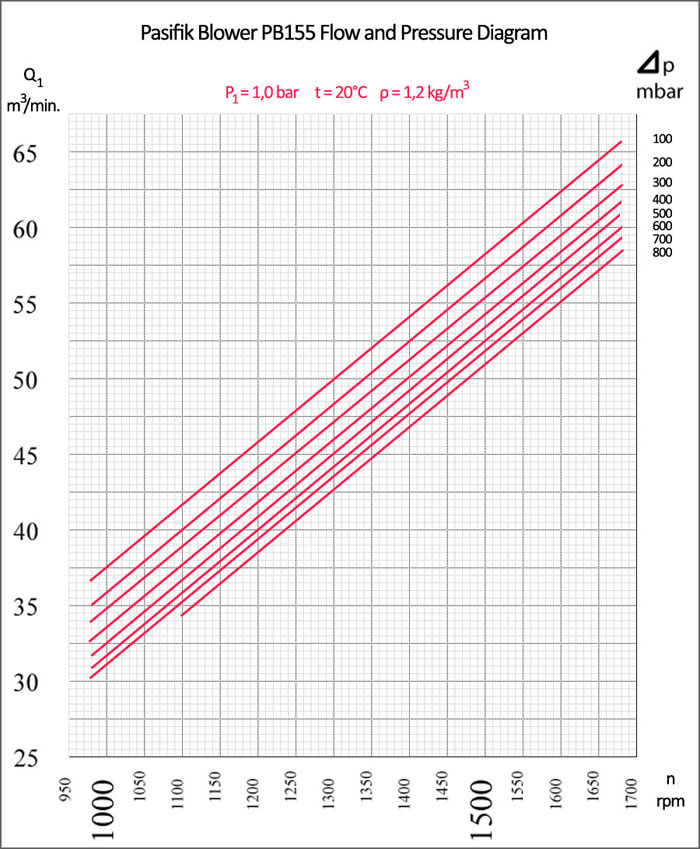

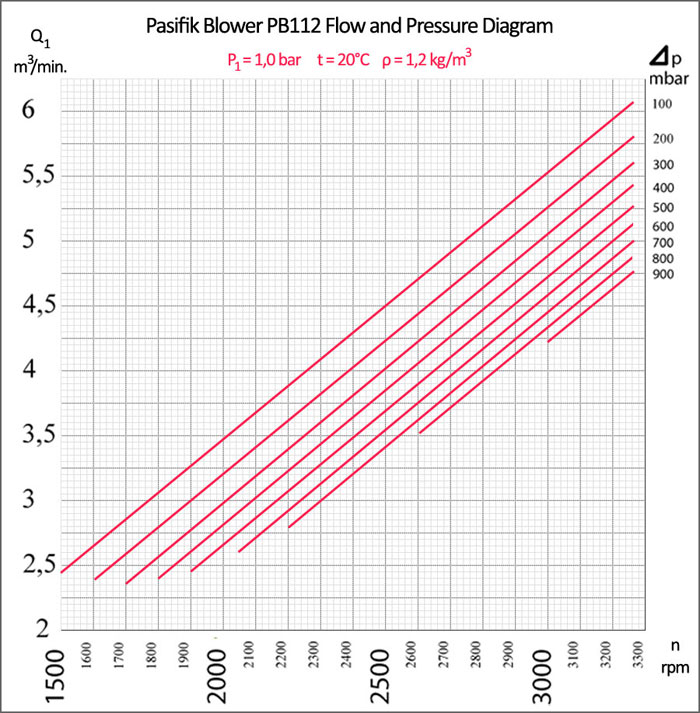

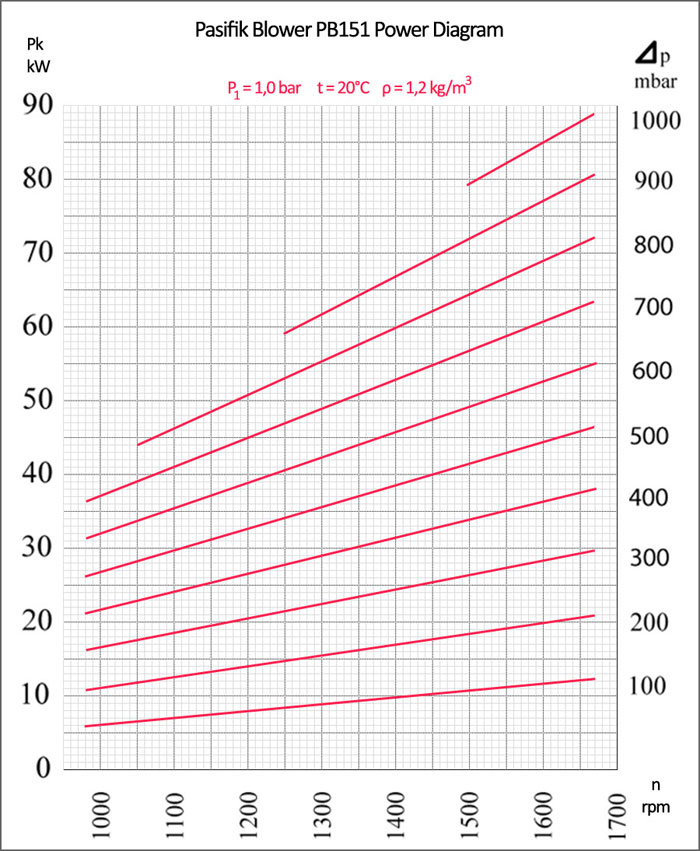

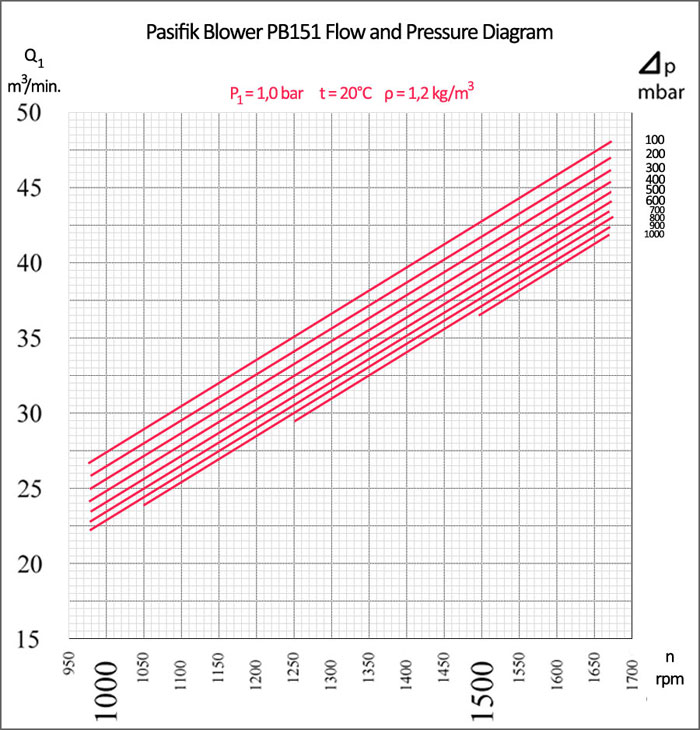

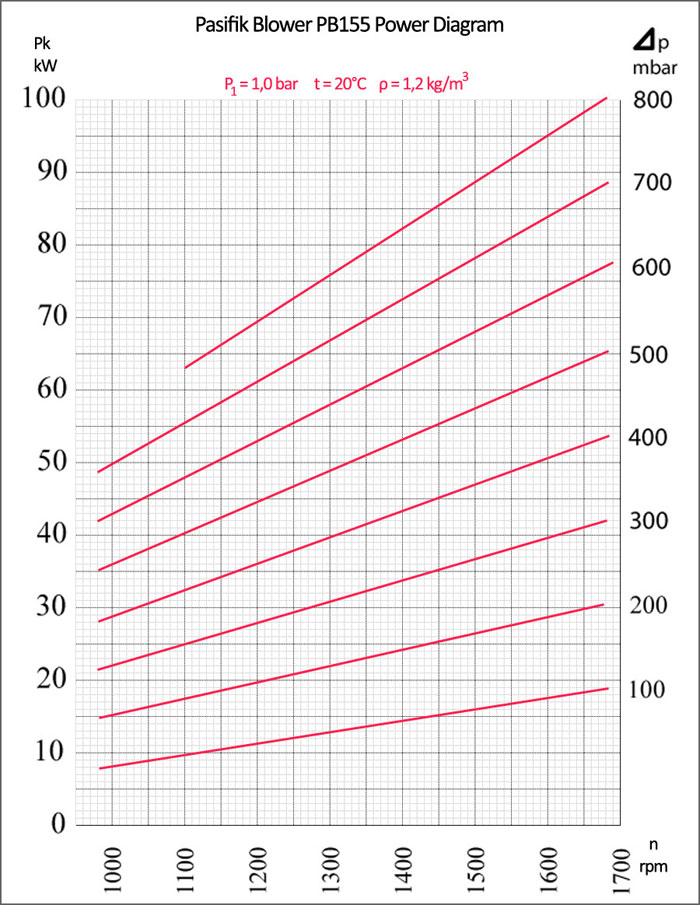

Flow & Pressure and Power Diagrams
PBPasifik Blower is a manufacturer company located in Turkey. We design and manufacture Roots Blower Pumps for hard working conditions and toughest applications. Combination of know-how, design, long years of experince and quality control in every steps have brought forth Pasifik Blower. We also offer a wide range of Roots Blowers for industrial applications. The highly-developed Roots Type Blowers are available sixteen different models with two-lobed and three-lobed. Thanks to sixteen different models, we can offer very high volume flow -from 60 to 15.000 m3/h- and pressure (up to 1000 mbar) with low energy consumption.
Pasifik Roots Blowers are positive displacement pumps. Although blowers are with low pressure machines, they provide higher air flow than most compressors. The volume flow is constant regardless of pressure changes. Positive displacement (PD) blowers, employed for conveying of air or gases vertically or horizontally in positive or negative pressure, are oil-free operation machines. Non-contact operating rotors (impellers) and blower housing do not require lubrication. This provides a great advantage for obtaining clean air or gases.
Another decisive factor is heat dissipation to prefer Roots Blower. Overheating is undesirable situation for most machines. Overheating is prevented through ribbed blower body for efficiency heat dissipation.
Roots Blowers are commonly called as “roots supercharger, air blower, rotary blower, rotary pump, positive displacement pump, roots blower compressor in industry. Roots Blower, a type of positive displacement pumps, is employed in which the pressurized and vacuumed fluid (air or gas) is required.
Roots blowers are used in many industrial applications. They are often preferred for air and gas circulation applications. For detailed information about roots blowers applications, you can click below items.
